2006 Harley Davidson Xl1200l Sportster 1200 Low

2006 Harley Davidson Xl1200l Sportster 1200 Low

Harley Davidson XL 1200L Sportster Low

Make Model

Harley Davidson XL 1200L Sportster Low

Year

2008 - 09

Engine

Fur stroke, 45� V-Twin Evolution� Valve Train Pushrod-operated, OHV, 2 valves per cylinder

Capacity

1199 cc / 73.2 cu-in
Bore x Stroke 88.8 x 96.8 mm
Cooling System Air cooled
Compression Ratio 9.7:1
Lubrication Dry-sump

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Ignition

Digital CDI

Starting

Electric

Max Torque

107.3 Nm / 79 lb-ft @ 4000 rpm
Clutch Wet 9-plate

Transmission

5 Speed
Final Drive Belt
Primary Drive Chain, 57/38 ratio
Gear Ratio 1st 9.315  2nd 6.653  3rd 4.948   4th 4.102   5th 3.517
Frame Mild steel, tubular frame, circular sections,
cast junctions

Rear Suspension

Coil-over, dual-adjustable preload chocs

Front Brakes

Single 292mm disc 2 piston calipers

Rear Brakes

Single 260mm disc 1 piston caliper

Front Tyre

100/90-19 57H

Rear Tyre

150/80B16 71H
Rake 29.6�
Trail 120 mm / 4.7 in
Dimensions Length 2263.1 mm / 89.1 in
Width 894.1 mm / 35.2 in
Height 1188.7 mm / 46.8 in
Wheelbase 1516 mm / 59.7 in
Seat Height Laden  668. mm  /  26.30 in.
Unladen 711.2 mm  /  28.0 in.
Ground Clearance 112 mm / 4.1 in
Gross Vehicle Weight Rating 453.60 kg / 1000 lbs
Dry Weight 257 kg / 557 lbs

Wet Weight

263.5 kg / 581 lbs

Fuel Capacity

17 Litres / 4.5 US gal

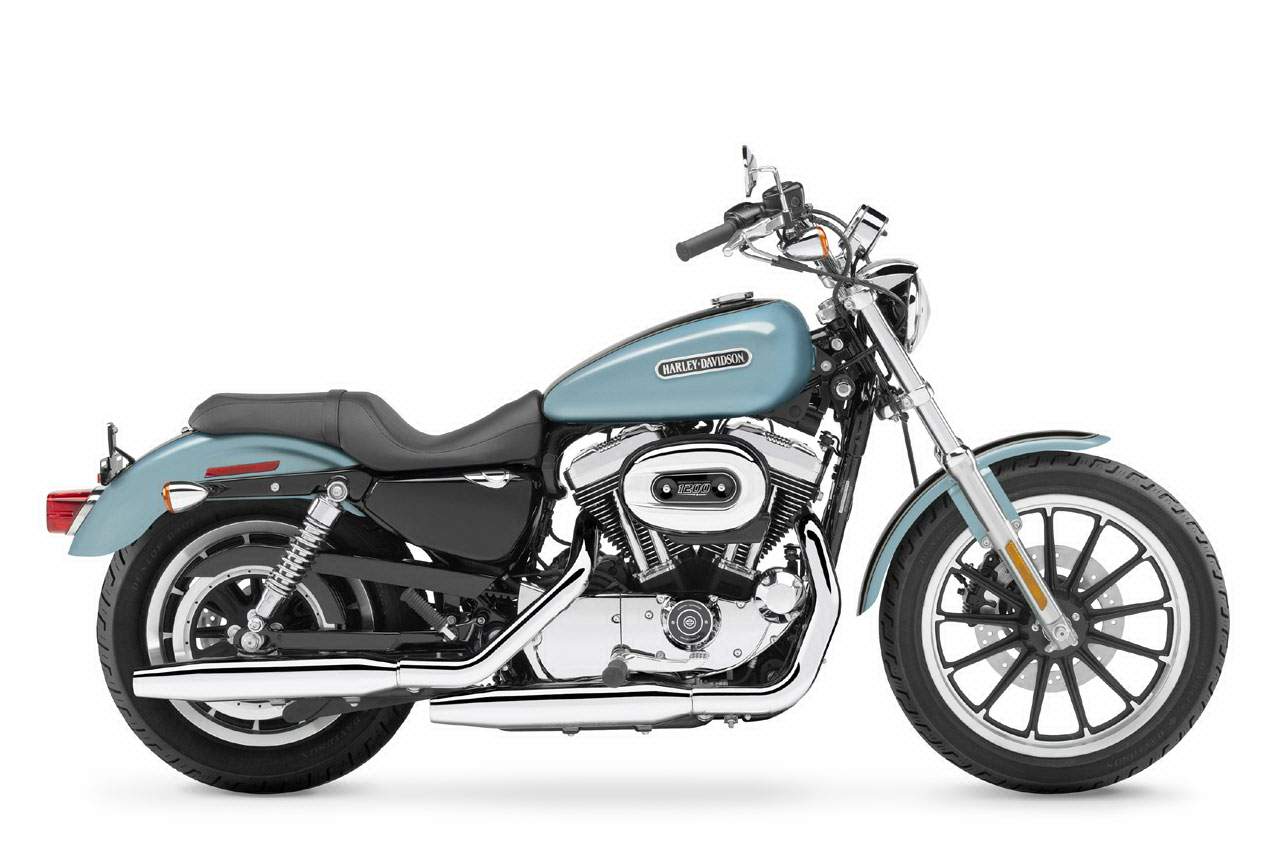

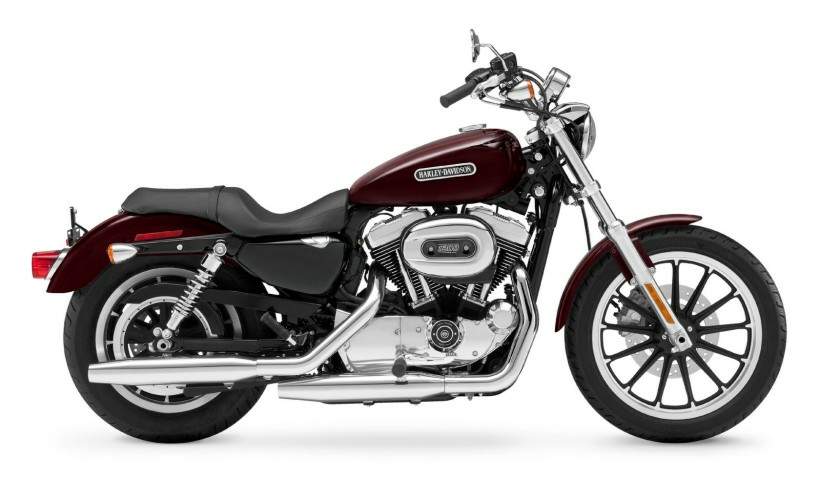

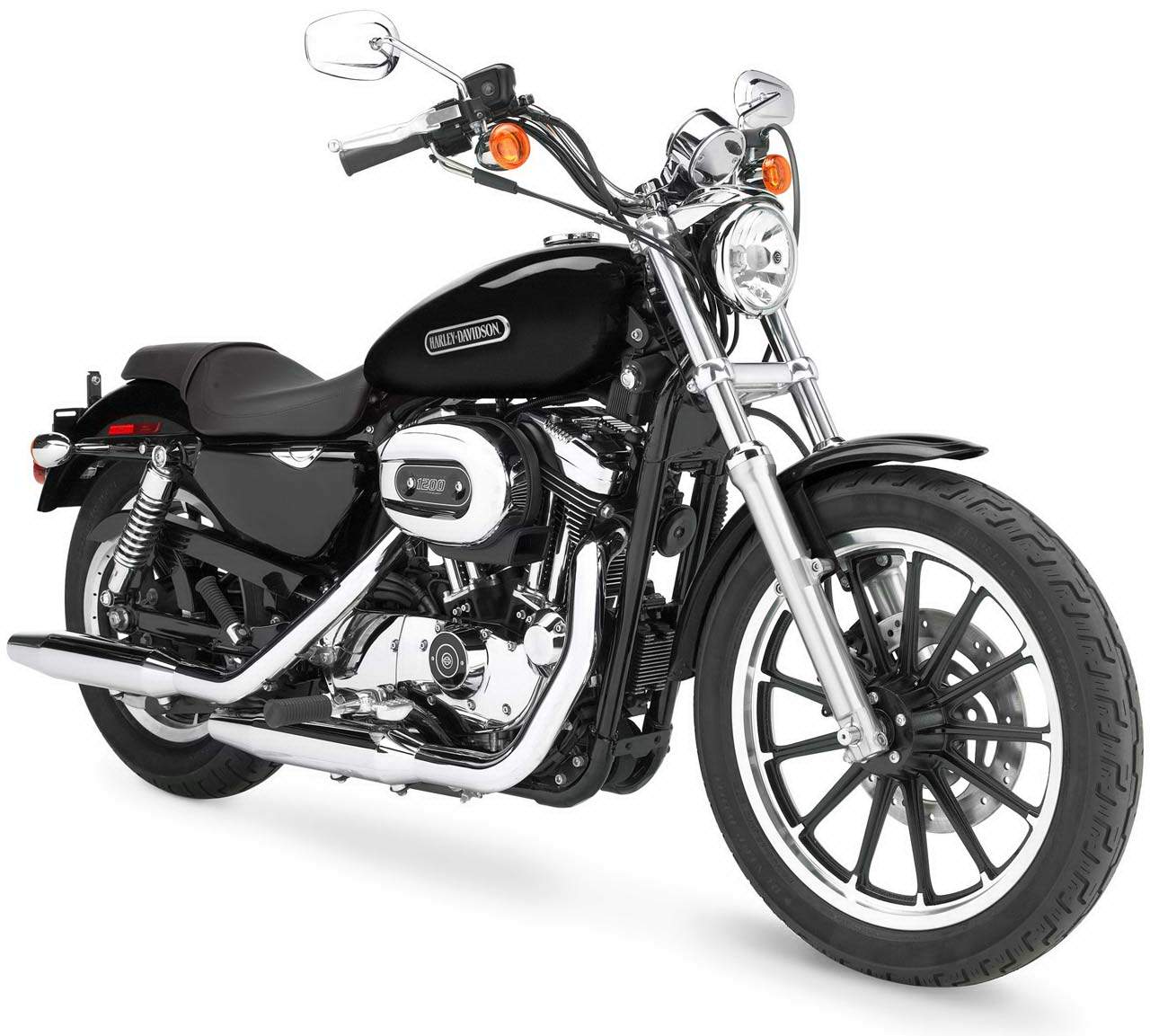

The XL 1200L Sportster Low is a long and low motorcycle with plenty of power. A wide, pullback handlebar and a low two-up seat provide comfortable ergonomics. The reduced clutch and brake lever effort makes the 1200 Low a relaxed ride. Electronic Sequential Port Fuel Injection (ESPFI) provides smooth operation. The 1200cc rubber-mounted XL Evolution engine combines with a 4.5-gallon tank for longer range. The new gauge include a clock, low-fuel warning light and two trip set odometers, while longer handlebar wires provide more customization options. The special Black, 13-spoke Cast Aluminum 19-inch front wheel combines with a Black, 13-spoke Cast Aluminum 16-inch rear wheel and mid-mounted foot controls for a sweet ride. Chrome, Laced Steel wheels are optional as is the Smart Security System. Five solid and three two-tone color options are offered for 2007.

Enhanced Suspension: The suspension is upgraded on the 883 Custom, 1200 Low and 1200 Custom. Springs and dampening rates have been recalibrated and new damping devices were installed to provide superior ride quality.

New Front Fenders: All Sportster models get a new low-profile front fender that hugs the tire for a streamlined, custom look.

New Rear Wheel on Custom models: The 883 Custom and 1200 Custom models receive new rear wheels that weigh four pounds less while maintaining stiffness and durability. The lighter wheel improves ride quality by reducing unsprung weight. The 1200 Custom has a new chrome cast aluminum slotted disc rear wheel, while the 883 Custom rear is a Silver cast aluminum solid disc.

Rubber-mounted XL Evolution 1200cc engine
Black powder-coated engine with chrome covers
Black 13-spoke Cast Aluminum wheels, 19-inch front / 16-inch rear
Wide handlebar on pull-back risers
New recalibrated suspension
New low profile front fender
One-piece, two-up Sportster Classic seat
Chrome Staggered Shorty Dual exhaust
Low-Profile rear shocks
Low-Profile front forks
Mid-mount foot controls
Integrated chrome gauge housing and handlebar clamp
Black fender strut covers
4.5-gallon fuel tank
Optional Steel Laced wheels
Optional Smart Security System

2006 Harley Davidson Xl1200l Sportster 1200 Low

Source: https://www.motorcyclespecs.co.za/model/h-d/harley_davidson_xl_1200lsportste%2009.htm
